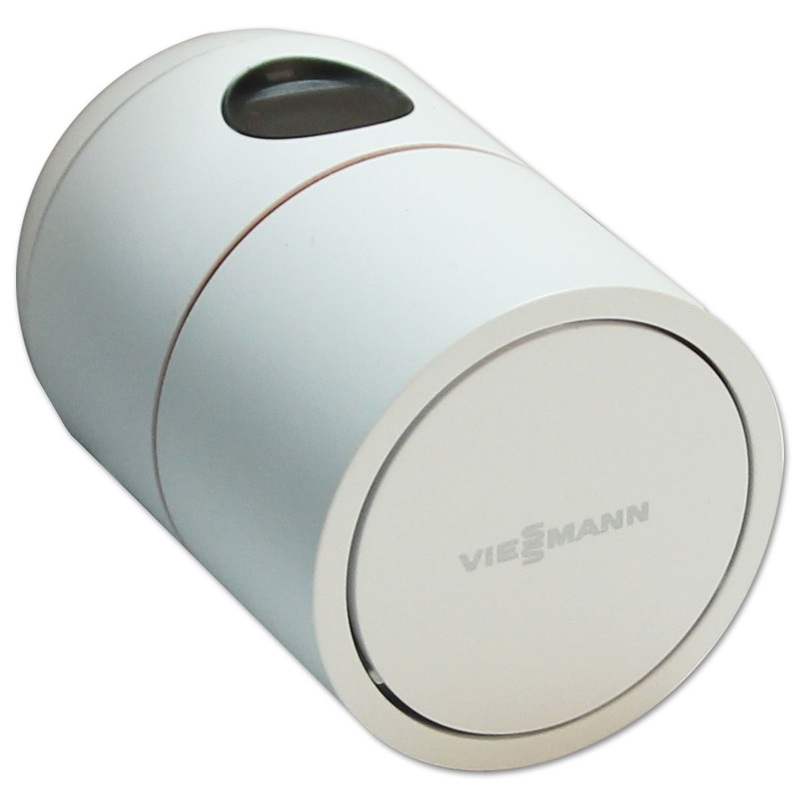

(x 4 Pack ) Viessmann TRV ViCare Smart Home starter package L radiator thermostat thermostatic head ZK05394

Description

Please call to check availability before ordering Live Chat/01985 850982

Kit Includes

• 4x Viessmann radiator thermostats
• 4x adapter set
• 1* Installation Instructions

Customers Also Bought –
Vicare Viessmann climate sensor and Wifi repeater ( Recommended )
ViCare Viessmann Wireless repeater for surface mounting with cable

Description:

• Enables easy control of your radiators via the ViCare app
• for individual room control in conjunction with the Vitoconnect OPTO2 internet interface or the new Vitodens gas condensing boilers
• with an integrated temperature sensor for recording the current room temperature
• incl. adapter set for Danfoss thermostatic valve types RA, RAV, RAVL and M30x1.5 mm
• easy installation via adapter on all common radiators
• the digital display shows temperature values
• Regulation in 0.5 C steps
• enables individual room control via ViCare
• measures room temperature
• timeless and robust design
• made in Europe
• Note: do not use rechargeable batteries

When do I need a ViCare radiator thermostat:

• A ViCare thermostat, in conjunction with the ViCare app, makes it possible to set the temperature individually for each room
• Time programs for heating and hot water preparation make a significant contribution to saving energy costs
• Due to the direct connection to the heat generator, the fuel consumption and the yields of a solar thermal system are determined particularly precisely and clearly shown on the smartphone display
• several thermostats in a room can be linked together

Technical specifications:

• Power supply: 2 x 1.5 volt alkaline batteries LR6 type AA(do not use rechargeable batteries)
• Battery life: approx. 2 years
• Noise level at a range of 1 m: < 30 dB(A)
• Radio frequency: 2.4 GHz low power radio 3.0 radio standard
• Frequency band: 2405.0 to 2480.0MHz
• Transmission power max.: 0.1 W (eirp)
• Transmission interval: every 7.5 seconds.
• Control range: +8 C to +30 C
• Nominal stroke range: 4.20 mm
• Valve lift: 4.35mm
• Valve positioning force: 70 N
• Connection: M30x1.5 mm adapter for Danfoss RAV, RA, RAVL
• Permissible ambient temperature Operation: 0 C to +40 C Use in living and boiler rooms (normal ambient conditions)
• Protection class: III
• Degree of protection: Ensure IP20D according to EN 60529 through construction/installation
• Width: 55mm
• Length: 75mm
• Article no.: ZK05394

Available downloads:

• Download operating and installation instructions
• Download Quick Start Guide
• Download declaration of conformity
