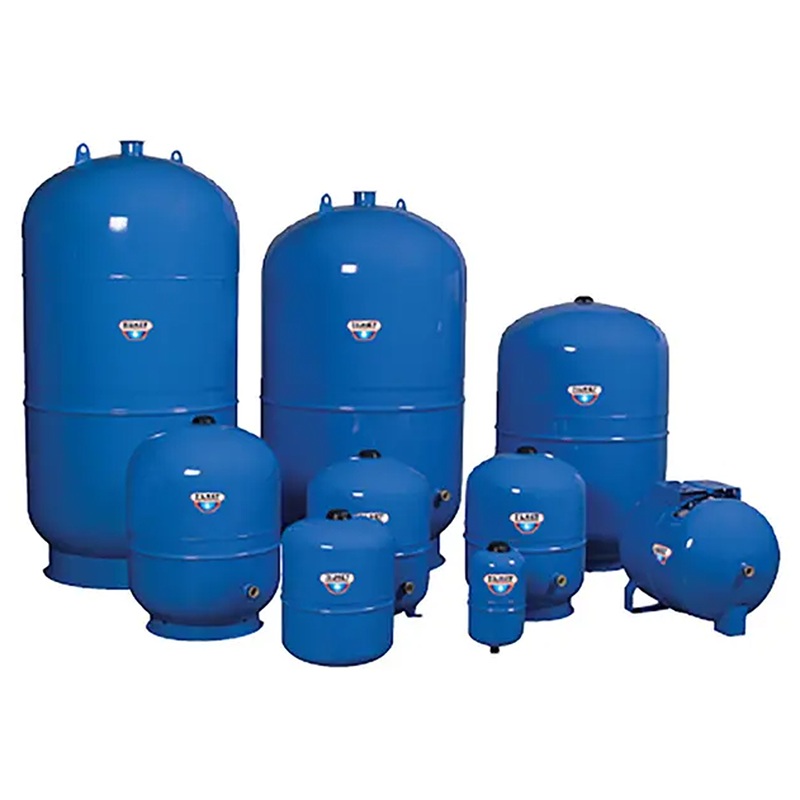

Zilmet Hydro-pro 1inch 24-litre, 50-litre Horizontal Potable-water Vessel Bsp Fixed Membrane

Description

Zilmet Hydro-pro 1inch 24-litre, 50-litre Horizontal Potable-water Vessel Bsp Fixed Membrane

FEATURES

HYDRO-PRO is of compact design together with a seamless diaphragm that never stretches or creases. There are no bubbles or corners to trap sediment helping to inhibit bacterial growth; HYDRO-PRO has international approvals allowing its use with potable water.

TECHNICAL INFORMATION

• 1inch Bsp Connection Fixed Membrane
• Protected precharge valve – 2 bars.
• Durable steel tank – Deep drawn steel shell for extra strength.
• MIG welding process eliminates interior rough spots and sharp edges and prevents damage to both diaphragm and liner.
• Pre-pressurised air chamber.
• Butyl diaphragm isolates water from air.
• Exclusive internal epoxy coating: no corrosion.
• External epoxy-polyester coating: no rusting.
• Mild steel connection

Max. working pressure 10bar Operating temperature -10/+99C Factory precharge mod.2 litres 3.5bar Factory precharge mod.5-8 litres 3bar Factory precharge mod.12-600 litres 2bar

Downloads – Zilmet Hydro-Pro Installation & Specification

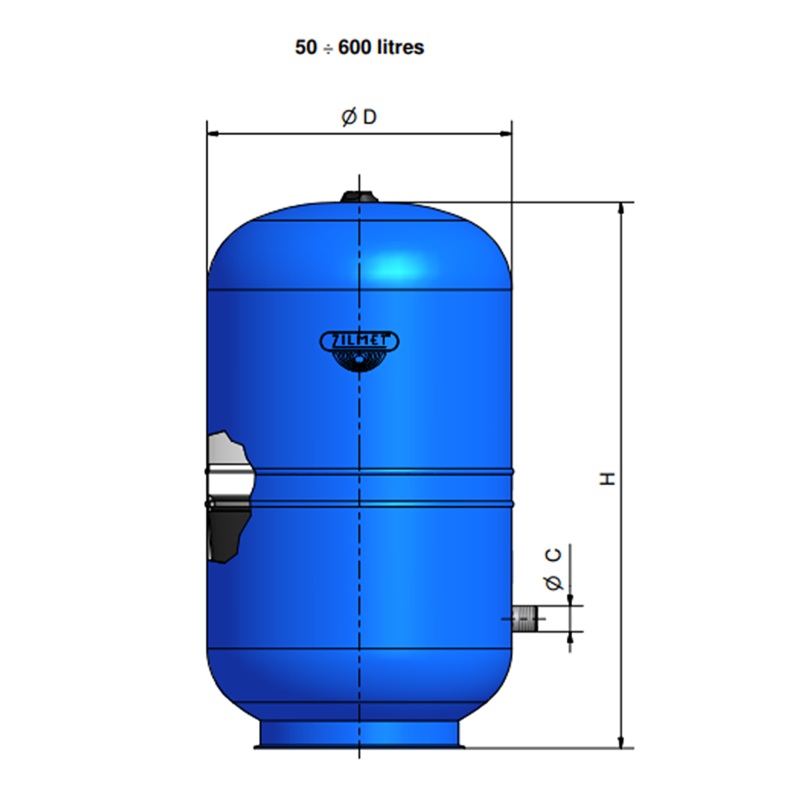

Dimensions

MODEL

CODE

CAPACITY

LITRES

DDIAMETER

(mm)

H HEIGHT

(mm)

E

(mm)

CONNECTION

HYDRO-PRO 2

11A0000200 2 142 196 – 1/2″G

HYDRO-PRO 5

11A0000500 5 160 270 – 3/4″G

HYDRO-PRO 8

11A0000800 8 200 280 – 3/4″G

HYDRO-PRO 12

11A0001200 12 270 264 – 3/4″G

HYDRO-PRO 18

11A0001800 18 270 349 – 3/4″G

HYDRO-PRO 24

11A0002400 24 300 392 – 1″G

HYDRO-PRO 24 Horizontal

11A0002434 24 300 333 – 1″G

HYDRO-PRO 35

11A0003500

35

380 360 –

1″G

HYDRO-PRO 50*

11A0005000 50 380 505 153 1″G

HYDRO-PRO 50 Horizontal

11A0005002 50 380 418 – 1″G

HYDRO-PRO 50

11A0005029

50

380

497

–

1″G

HYDRO-PRO 80

11A0008000

80

450

608

150

1″G

HYDRO-PRO 105

11A0010500

105

500

665

165

1 1/4″G

HYDRO-PRO 150

11A0015000

150

500

897

216

1 1/4″G

HYDRO-PRO 200

11A0020000

200

600

812

225

1 1/4″G

HYDRO-PRO 250

11A0025000

250

630

957

245

1 1/4″G

HYDRO-PRO 300

11A0030000

300

630

1105

245

1 1/4″G

HYDRO-PRO 400

11A0040000

400

630

1450

245

1 1/4″G

HYDRO-PRO 500

11A0050000

500

750

1340

290

1 1/4″G

HYDRO-PRO 600

11A0060000

600

750

1460

290

1 1/4″G
